Aluminum Wide Plate for Tankers

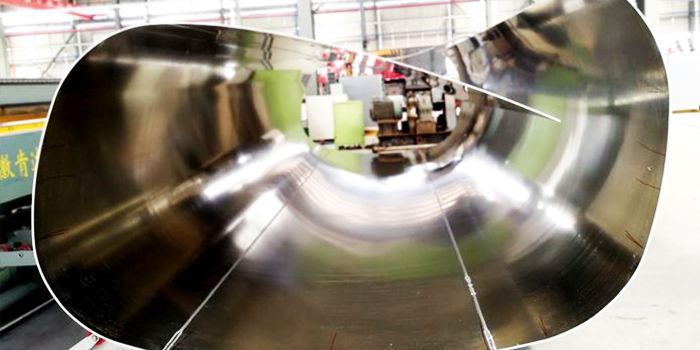

We produce 5083, 5182, 5454 and 5059 aluminum wide pate for tankers, with a maximum width of 3800mm. The plates are used in tanker body, bulkhead, cylinder head, baffle, wash board etc.
Specifications
Alloy-state | Thickness | Width | Length | Application |
5083-H111 5454-H32/H111 5182-H111 5059-H111/H32 | 5mm-9mm | 1000-3800mm | 2000-27000mm | Tanker body |
5083-O 5454-O 5182-O 5059-O | 6mm-10mm | 1000-3800mm | 2000-27000mm | Cylinder head |
5083-O 5454-O 5182-O 5059-O | 5mm-8mm | 1000-3800mm | 2000-27000mm | Bulkhead, wash board, baffle |
We have high standards for the surface quality and size tolerance of the plates, and slight color difference, scratches, edge abrasions, etc. are not allowed. All plates will be filmed before being packaged, and you can also not to choose film with aluminium plate for tankers bulkhead. The aluminum plates used for the tank body can be made into a heat preservation tank, a polished plate, etc.
Tolerance of Thickness for Haomei aluminum wide plate for tankers
Nominal thickness (mm) | Thickness tolerances in different width ranges (mm) | ||||
＞ | ≤ | W≤1250 | 1250＜W≤1600 | 1600＜W≤2000 | 2000＜W≤2500 |
3.0 | 6.0 | +0.32 0 | +0.32 0 | +0.40 0 | +0.45 0 |
6.0 | 8.0 | +0.38 0 | +0.46 0 | +0.50 0 | +0.60 0 |
8.0 | 12.0 | +0.45 0 | +0.56 0 | +0.65 0 | +0.80 0 |
Width: +4, 0 Length: +0.45, 0 Horizontal unevenness: 2mm/m Diagonal: +4, 0 | |||||
Why choose us
1. Haomei can provide ultra-wide (board width: 3800mm; roll width 2650mm) and ultra-long (2000-27000mm) tanker plates. The use of wide plates can reduce welds and enhance the strength and corrosion resistance of the tank.
2. Our aluminum alloy production process is quite mature, and the aluminum wide tanker plates produced can be processed by various welding forms such as TIG, MIG, FSW (Friction Stir Welding), EBW (Electron Beam Welding), etc.
3. The Haomei engineer team has developed a variety of aluminum alloy materials for tankers, including 5182, 5088, 5052, 5454, 5754, etc. Their chemical compositions and mechanical properties especially meet the needs of tanker materials.
4. Our tanker plates are suitable for ADR certification requirements, and have passed various certifications including ISO 9001, IRIS 02, ISO14001, and are a sort of safe, durable, wear-resistant and corrosion-resistant aluminum alloy plate.
5. 28 years of production experience + 20 years of export experience
Price
The aluminum wide plate for tankers is more expensive than common aluminium plates of the same alloys, for its width and length are particular, and it must be hot rolled to obtain a good bending performance. Basic price factors include the aluminum ingot price and the manufacturing cost, which is further influenced by changeable elements, thus it’s impossible to give a specific offer here. Welcome to contact us for an instant price!
